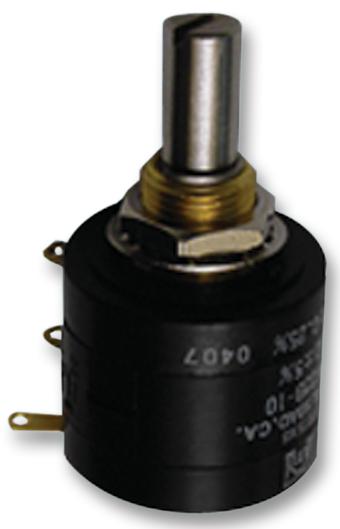

ETI SYSTEMS - MH22B-3-5K - Rotary Potentiometer, Wirewound, 5 kohm, 3 Turns, Linear, 1 W, ± 10%, MH22
- Track Resistance: 5kohm
- No. of Turns: 3Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: MH22 Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.83mm
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 16.51mm
- External Length / Height: 19.05mm
- Linearity, +: 0.5%
- Linearity, -: 0.5%
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +105°C
- Resistor Element Material: Metal Foil
- Rotation Electrical Angle: 1080°
- Rotation Mechanical Angle: 1080°
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Temperature Coefficient: ± 100ppm/°C
- Termination Type: Solder
- Tolerance +: 10%
- Tolerance -: 10%
