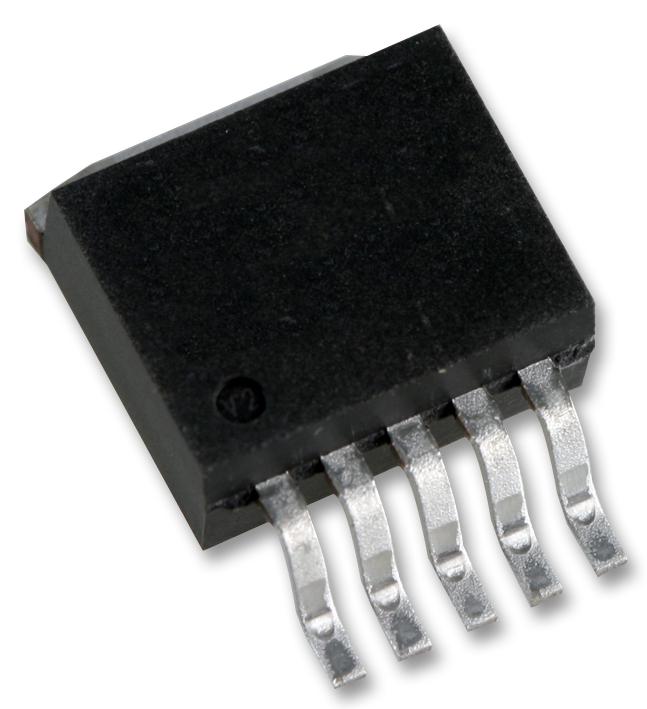

MIC29302WU V Reg, LDO 3a Adj, 29302, TO-263-5 Microchip

MICROCHIPSKU:MIC29302WU Bestelcode:2510026

Prijs:
Actie prijs€4,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (14170 units)

Documenten en downloads

Omschrijving

MICROCHIP - MIC29302WU - LDO Voltage Regulator, Adjustable, 2V to 26V input, 370 mV drop., 1.27V to 25V/3A out, TO-263-5

  • Output Type: Adjustable
  • Input Voltage Min: 2V
  • Input Voltage Max: 26V
  • Fixed Output Voltage Nom.: -
  • Adjustable Output Voltage Min: 1.27V
  • Adjustable Output Voltage Max: 25V
  • Output Current: 3A
  • Dropout Voltage Vdo: 370mV
  • LDO Regulator Case Style: TO-263
  • No. of Pins: 5Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Accuracy %: 1%
  • Base Number: 29302
  • No. of Outputs: 1Outputs
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage Max: 25V
  • Output Voltage Min: 1.27V
  • Primary Input Voltage: 26V
  • Supply Voltage Min: 2.5V
  • Termination Type: Surface Mount Device
  • Voltage Regulator Type: Adjustable
