Omschrijving

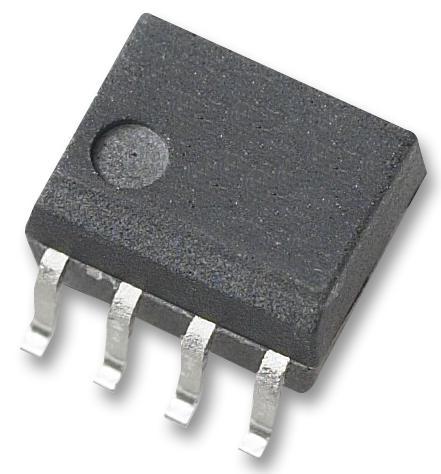

ONSEMI - MOCD207R2M - Optocoupler, Transistor Output, 2 Channel, SOIC, 8 Pins, 60 mA, 2.5 kV, 100 %
- No. of Channels: 2 Channel
- Optocoupler Case Style: SOIC
- No. of Pins: 8Pins
- Forward Current If Max: 60mA
- Isolation Voltage: 2.5kV
- CTR Min: 100%
- Collector Emitter Voltage V(br)ceo: 70V
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Approval Category: UL Recognised
- Current Transfer Ratio Max: 200%
- Current Transfer Ratio Min: 100%
- Current Transfer Ratio Typ: 150%
- External Depth: 3.91mm
- External Length / Height: 3.38mm
- External Width: 4.88mm
- Fall Time tf: 2.2µs
- Forward Current If(AV): 10mA
- Input Current: 60mA
- Lead Spacing: 1.27mm
- No. of Channels: 2Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 70V
- Rise Time: 1.6µs
- Row Pitch: 5.94mm
