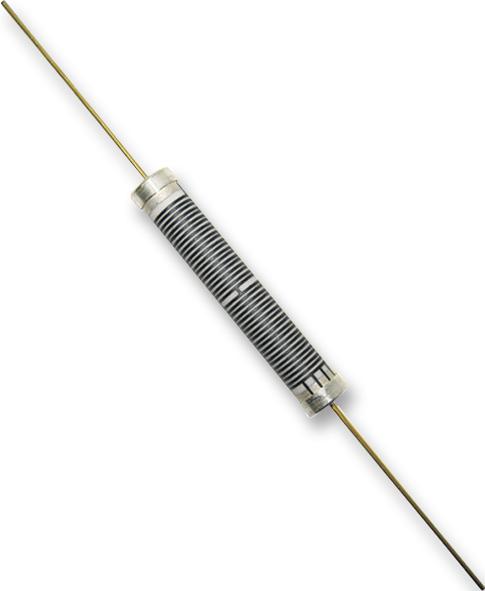

OHMITE - MOX94021005FVE - Through Hole Resistor, 10 Mohm, Maxi-Mox, 10 W, ± 1%, Axial Leaded, 45 kV
- Resistance: 10Mohm
- Product Range: Maxi-Mox Series
- Power Rating: 10W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 45kV
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 50ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 8mm
- External Length / Height: 77mm
- Height: 77mm
- Lead Diameter: 0.8mm
- Lead Length: 35mm
- No. of Pins: 2Pins
- Operating Temperature Max: 225°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +225°C
- Resistor Mounting: Through Hole
