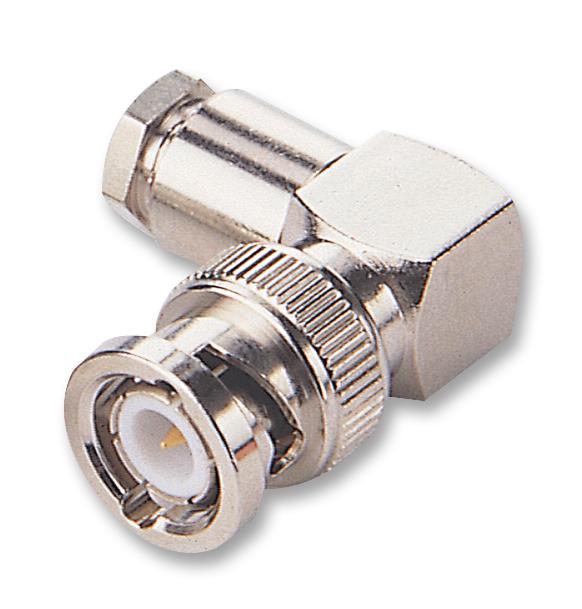

Mp-13-06-1 Tss RG58U RF Coaxial, BNC, Right Angle Plug, 50ohm multicomp Pro

MULTICOMP PRO - MP-13-06-1 TSS RG58U - RF / Coaxial Connector, BNC Coaxial, Right Angle Plug, Solder, 50 ohm, RG58, Brass

• Connector Type: BNC Coaxial
• Connector Body Style: Right Angle Plug
• Coaxial Termination: Solder
• Impedance: 50ohm
• Coaxial Cable Types: RG58
• Contact Material: Brass
• Contact Plating: Silver Plated Contacts
• Frequency Max: 4GHz
• Connector Mounting: Cable Mount
• Product Range: -
• SVHC: Lead (15-Jan-2019)
• Approval Bodies: MIL Spec
• Body Plating: Silver
• Cable Diameter Max: 5mm
• Coaxial Type: RG58
• Connector Mounting Orientation: Cable
• Contact Resistance: 1.5mohm
• DC Current Max: 1A
• Material: Brass with Silicone Gaskets
• Operating Frequency Max: 4GHz
• Operating Temperature Max: 165°C
• Operating Temperature Min: -65°C
• Proof Voltage: 2kV
• Termination Method: Clamp
• VSWR: 1.35
• Working Voltage: 500V
