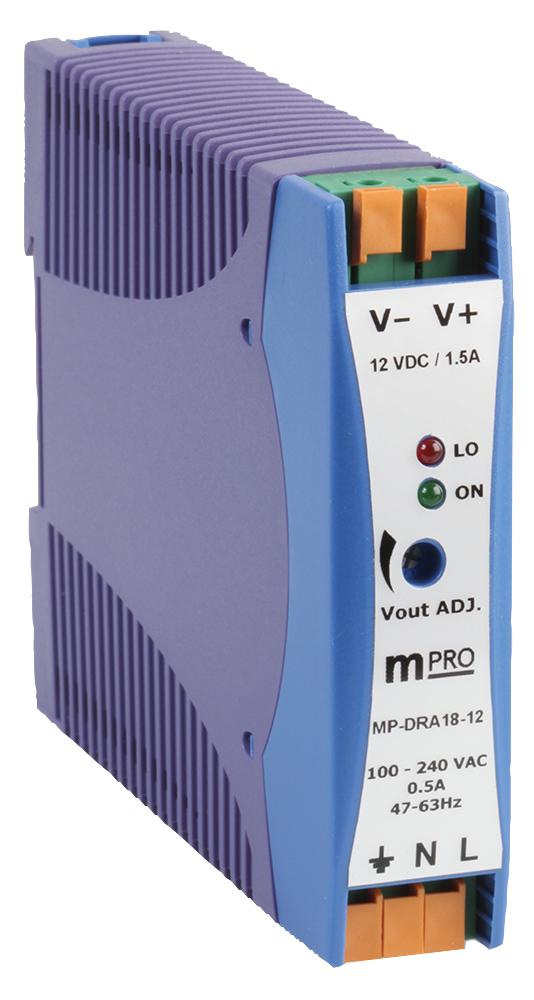

MP-DRA18-12 PSU, DIN RAIL, 18W, 12V MULTICOMP PRO

MULTICOMP PROSKU:MP-DRA18-12 Bestelcode:1181199

Prijs:
Actie prijs€52,70

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (30 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MP-DRA18-12 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 18 W, 12 VDC, 1.5 A

  • No. of Outputs: 1 Output
  • Output Power Max: 18W
  • Output Voltage - Output 1: 12VDC
  • Output Current - Output 1: 1.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Applications: Industrial
  • Approval Bodies: CE, TUV, UL
  • Efficiency: 77%
  • External Depth: 115mm
  • External Length / Height: 90mm
  • External Width: 22.5mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Height: 90mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Input Voltage Max: 265VAC
  • Input Voltage Min: 85VAC
  • Isolation Voltage: 3000VAC
  • Length: 115mm
  • Line Regulation: 1%
  • Load Regulation: 2%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -10°C
  • Output Current: 1.5A
  • Output Power: 18W
  • Output Ripple Voltage pk-pk: 150mV
  • Output Voltage: 12V
