MP0037/2 Switch, SPNO Anti-Vandal Bulgin Limited

BULGIN LIMITEDSKU:MP0037/2 Bestelcode:3114648

Prijs:
Actie prijs€38,24

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (91 units)

Documenten en downloads

Omschrijving

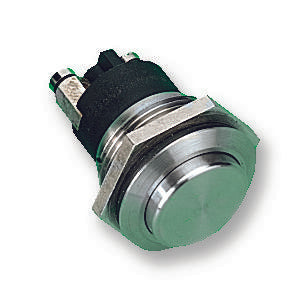

BULGIN LIMITED - MP0037/2 - Vandal Resistant Switch, 19.2 mm, SPST-NO, Momentary, Round Raised, Natural

  • Switch Operation: Momentary
  • Contact Configuration: SPST-NO
  • Contact Voltage AC Nom: 50V
  • Contact Voltage DC Nom: 50V
  • Contact Current Max: 1A
  • Switch Terminals: Screw
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Actuator / Cap Colour: Natural
  • Colour: Silver
  • Contact Current AC Max: 1A
  • Contact Current DC Max: 1A
  • Contact Voltage VAC: 50V
  • Contact Voltage VDC: 50V
  • Dielectric Strength VDC: 2.5kV
  • External Depth: 25.3mm
  • External Diameter: 21.5mm
  • External Length / Height: 28.4mm
  • IP / NEMA Rating: IP66
  • IP Rating: IP68
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 10000Mohm
  • Material: stainless steel/chromium
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 19.2mm
  • Panel Thickness Max: 4mm
  • Pushbutton Actuator Style: Raised Round
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
