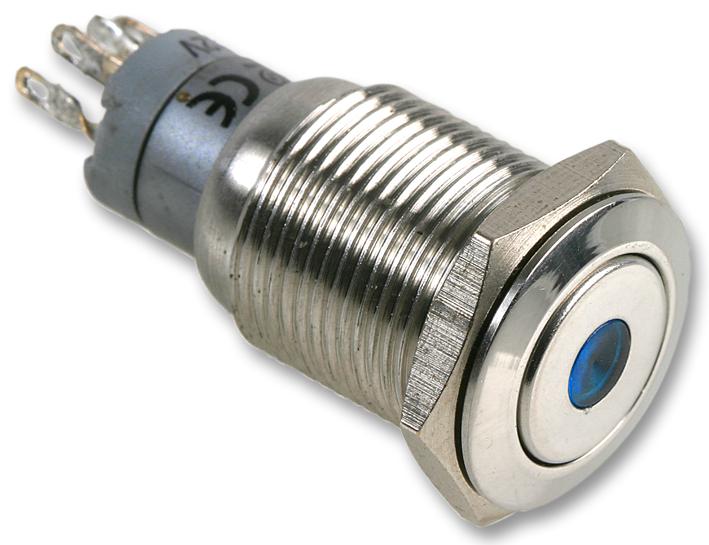

BULGIN LIMITED - MP0045/1E1GN012 - Vandal Resistant Switch, Dot, MP0045/1E, 16.2 mm, DPDT, Off-On, Flush, Natural
- Product Range: MP0045/1E Series
- Contact Configuration: DPDT
- Switch Operation: Off-On
- Contact Current Max: 3A
- Contact Voltage AC Nom: 250V
- Illumination Colour: Green
- Contact Voltage DC Nom: -
- Switch Terminals: Solder Lug
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Flat
- Actuator / Cap Colour: Natural
- Bezel Diameter: 18mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current AC Max: 3A
- Contact Resistance: 50mohm
- Contact Voltage VAC: 250V
- External Depth: 29.5mm
- IP Rating: IP40
- Insulation Resistance Voltage: 500VAC
- LED Colour: Green
- LED Voltage: 12VDC
- Material: Stainless Steel
- No. of Electrical Operations: 30000
- No. of Mechanical Operations: 200000
- Operating Temperature Max: 55°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 16.2mm
- Panel Thickness Max: 10mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
