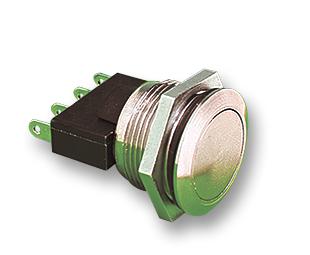

BULGIN LIMITED - MPB031 - Vandal Resistant Switch, 19.2 mm, SPDT, Momentary, Flush, Natural
- Contact Configuration: SPDT
- Actuator / Cap Colour: Natural
- Product Range: -
- Switch Operation: Momentary
- Illumination Colour: Non-illuminated
- Switch Terminals: Solder Lug
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Operating Force: 4.7N
- Contact Voltage DC Max: -
- SVHC: No SVHC (27-Jun-2018)
- Behind Panel Depth: 30mm
- Contact Current AC Max: 5A
- Contact Current DC Max: 2A
- Contact Resistance Max: 10mohm
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 28V
- Dielectric Strength VDC: 2kV
- External Diameter: 21mm
- External Length / Height: 30mm
- IP / NEMA Rating: IP66
- IP Rating: IP66
- Insulation Resistance: 1000Mohm
- Material: Brass, chrome plated
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 19.2mm
- Panel Thickness Max: 7.1mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
- Switching Current AC Max: 5A
