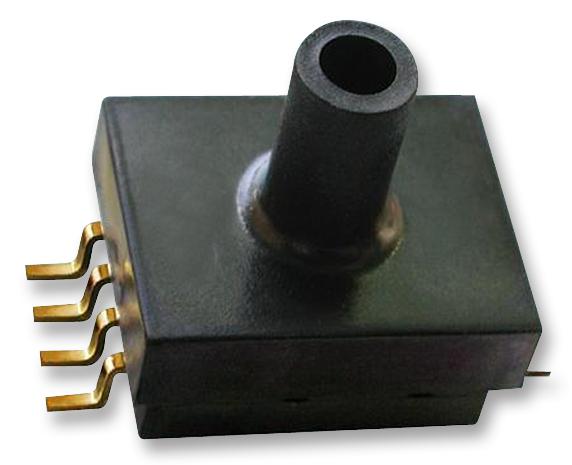

NXP - MPXH6400AC6U - Pressure Sensor, Absolute, 12.1 mV/kPa, 20 kPa, 400 kPa, 4.64 V, 5.36 V
- Pressure Type: Absolute
- Sensitivity, V/P: 12.1mV/kPa
- Operating Pressure Min: 20kPa
- Operating Pressure Max: 400kPa
- Supply Voltage Min: 4.64V
- Supply Voltage Max: 5.36V
- Sensor Case Style: SSOP
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 6400
- Connection Size: 3.302mm
- Operating Pressure Range: 20kPa to 400kPa
- Operating Temperature Range: -40°C to +125°C
- Supply Current: 6mA
- Supply Voltage Range: 4.64V to 5.36V
