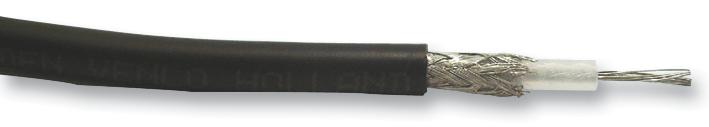

BELDEN - MRG5801.10100 - Coaxial Cable, RG58C, 50 ohm, 328 ft, 100 m
- Coaxial Cable Type: RG58C
- Wire Gauge: -
- Conductor Area CSA: -
- Impedance: 50ohm
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Black
- Jacket Material: -
- Conductor Material: Copper
- No. of Max Strands x Strand Size: 19 x 0.18mm
- External Diameter: 4.95mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 10MHz: 4.5dB
- Attenuation @ 1GHz: 50dB
- Attenuation @ 200MHz: 22dB
- Attenuation @ 400MHz: 32dB
- Capacitance: 100pF/m
- Conductor Make-up: 19 / 0.18mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -15°C
- Outer Diameter: 4.95mm
- Resistance per Metre: 36ohm/km
- Standard: LSNH
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 2000V
