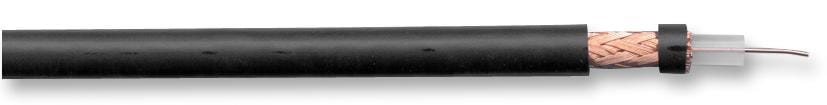

BELDEN - MRG5902.10100 - Coaxial Cable, RG59, 75 ohm, 328 ft, 100 m
- Coaxial Cable Type: RG59
- Wire Gauge: -
- Conductor Area CSA: -
- Impedance: 75ohm
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Black
- Jacket Material: LSZH
- Conductor Material: Copper
- No. of Max Strands x Strand Size: -
- External Diameter: 6.15mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 11.6dB
- Attenuation @ 1GHz: 42.9dB
- Attenuation @ 400MHz: 25dB
- Attenuation @ 50MHz: 8dB
- Attenuation @ 5MHz: 2.9dB
- Bend Radius Min: 35mm
- Capacitance: 67pF/m
- Operating Temperature Max: 70°C
- Operating Temperature Min: -15°C
- Outer Diameter: 6.15mm
- Resistance per Metre: 79ohm/km
- Standard: LSNH
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 2000V
