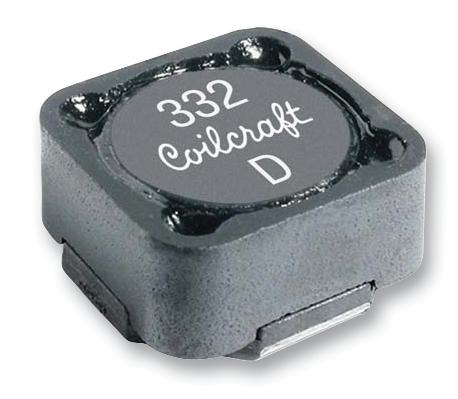

COILCRAFT - MSS1260-273MLD - Power Inductor (SMD), 27 µH, 2.9 A, Shielded, 3.52 A, MSS1260
- Inductance: 27µH
- RMS Current (Irms): 2.9A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.52A
- Product Range: MSS1260 Series
- Power Inductor Case: 12.3mm x 12.3mm x 6mm
- DC Resistance Max: 0.052ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 13MHz
