COILCRAFT Power Inductors - SMD MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT 2288470 MSS1260T-473MLD
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
COILCRAFT Power Inductors - SMD MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT 2288470 MSS1260T-473MLD

MSS1260T-473MLD INDUCTOR, 47UH, 2.5A, 20%, PWR, 11.6MHZ COILCRAFT

COILCRAFTSKU:MSS1260T-473MLD Bestelcode:2288470
Prijs:
€4,83

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

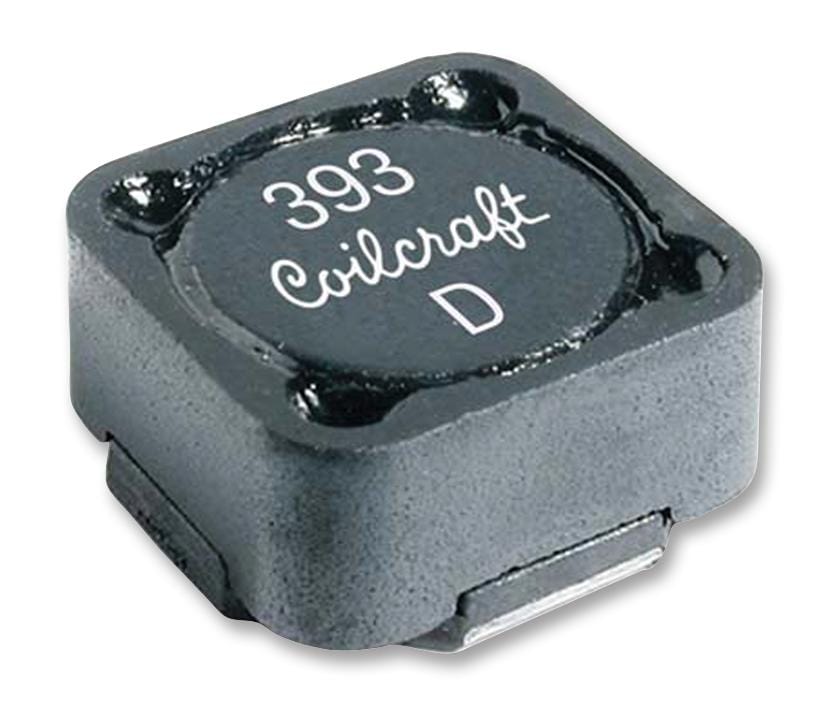

COILCRAFT - MSS1260T-473MLD - Power Inductor (SMD), 47 µH, 2.5 A, Shielded, 2.84 A, MSS1260T, 12.3mm x 12.3mm x 6mm

  • Inductance: 47µH
  • RMS Current (Irms): 2.5A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 2.84A
  • Product Range: MSS1260T Series
  • Power Inductor Case: 12.3mm x 12.3mm x 6mm
  • DC Resistance Max: 0.082ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 11.6MHz
