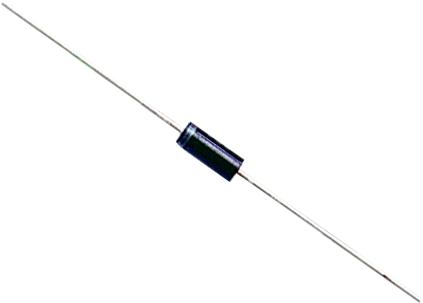

ONSEMI - MUR1100ERLG - Standard Recovery Diode, 1 kV, 1 A, Single, 1.75 V, 100 ns, 35 A
- Repetitive Reverse Voltage Vrrm Max: 1kV
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.75V
- Reverse Recovery Time trr Max: 100ns
- Forward Surge Current Ifsm Max: 35A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Product Range: MUR11 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 35A
- Diode Type: Standard Recovery
- External Diameter: 2.7mm
- External Length / Height: 5.2mm
- Forward Current If Max: 1A
- Forward Voltage: 1.75V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2 Pin
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
