Omschrijving

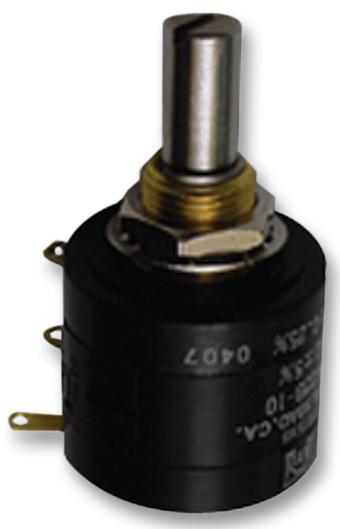

ETI SYSTEMS - MW22B-3-200 - Rotary Potentiometer, Wirewound, 200 ohm, 3 Turns, Linear, 700 mW, ± 5%, MW22B
- Track Resistance: 200ohm
- No. of Turns: 3Turns
- Track Taper: Linear
- Power Rating: 700mW
- Resistance Tolerance: ± 5%
- Product Range: MW22B Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.83mm
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 22.35mm
- External Length / Height: 19.05mm
- Linearity, +: 0.25%
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +105°C
- Resistor Element Material: Wirewound
- Rotation Electrical Angle: 1080°
- Rotation Mechanical Angle: 1080°
- Temperature Coeff. +: 80ppm/°C
- Temperature Coeff. -: 80ppm/°C
- Temperature Coefficient: ± 80ppm/°C
- Termination Type: Solder
- Tolerance +: 5%
- Tolerance -: 5%
