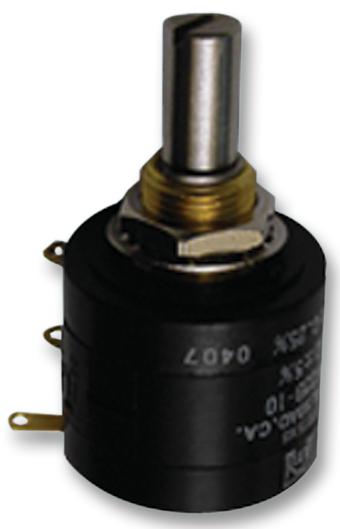

MW22B-3-2K Potentiometer, 3 Turn 2K OHM 0.7w ETI Systems

ETI SYSTEMSSKU:MW22B-3-2K Bestelcode:1307127

Prijs:
Actie prijs€63,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21 units)

Documenten en downloads

Omschrijving

ETI SYSTEMS - MW22B-3-2K - Rotary Potentiometer, Wirewound, 2 kohm, 3 Turns, Linear, 700 mW, ± 5%, MW22B

  • Track Resistance: 2kohm
  • No. of Turns: 3Turns
  • Track Taper: Linear
  • Power Rating: 700mW
  • Resistance Tolerance: ± 5%
  • Product Range: MW22B Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 20.83mm
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 22.35mm
  • External Length / Height: 19.05mm
  • Linearity, +: 0.25%
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +105°C
  • Resistor Element Material: Wirewound
  • Rotation Electrical Angle: 1080°
  • Rotation Mechanical Angle: 1080°
  • Temperature Coeff. +: 80ppm/°C
  • Temperature Coeff. -: 80ppm/°C
  • Temperature Coefficient: ± 80ppm/°C
  • Termination Type: Solder
  • Tolerance +: 5%
  • Tolerance -: 5%
