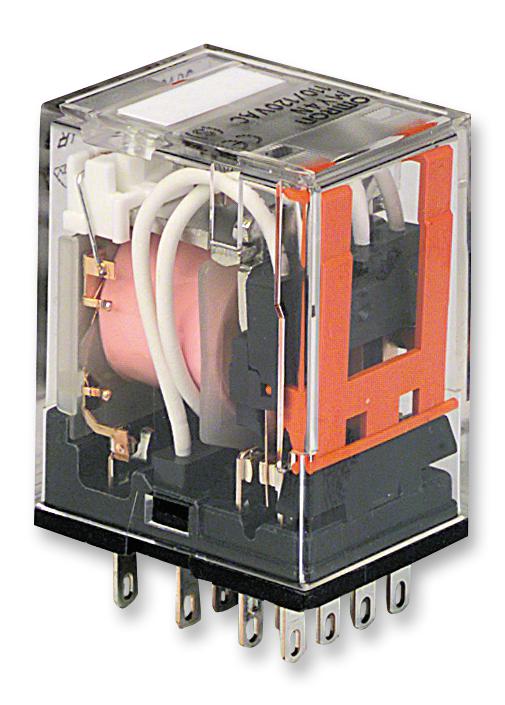

MY4 100/110VDC (S) Relay, 4PDT, 250VAC, 30Vdc, 5A Omron

OMRONSKU:MY4 100/110VDC (S) Bestelcode:3158858

Prijs:
Actie prijs€21,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

OMRON - MY4 100/110VDC (S) - Power Relay, 4PDT, 110 VDC, 5 A, MY, Socket, Non Latching

  • Contact Configuration: 4PDT
  • Coil Voltage: 110VDC
  • Contact Current: 5A
  • Product Range: MY Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 11.1kohm
  • AC Coil Power: 1.2VA
  • Approval Bodies: CSA, UL, VDE
  • Approvals & Standards: CSA, UL
  • Coil Current: 9.9mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VAC Nom: 240V
  • Coil Voltage VDC Nom: 110V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 0.9W
  • External Depth: 36mm
  • External Height: 28mm
  • External Length / Height: 28mm
  • External Width: 21.5mm
  • Nom Operating Power: 900mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -55°C
  • Operating Time: 20ms
  • Relay Type: Power
  • Release Time: 20ms
