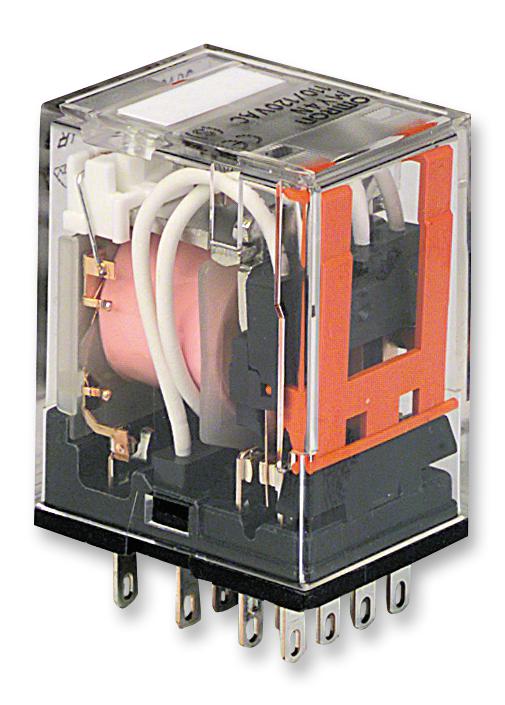

OMRON - MY4 DC24 - Power Relay, 4PDT, 24 VDC, 3 A, MY, Socket, Non Latching
- Contact Configuration: 4PDT
- Coil Voltage: 24VDC
- Contact Current: 3A
- Product Range: MY Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 650ohm
- Approvals & Standards: CSA, UL
- Coil Current: 36.9mA
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 3A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- External Depth: 21.5mm
- External Height: 36mm
- External Width: 28mm
- Nom Operating Power: 900mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Time: 20ms
- Relay Type: Power - General Purpose
- Release Time: 20ms
