N3431-5302RB HEADER, RIGHT ANGLE, L/LATCH, 34WAY 3M

3MSKU:N3431-5302RB Bestelcode:9838058

Prijs:
Actie prijs€8,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (121 units)

Documenten en downloads

Omschrijving

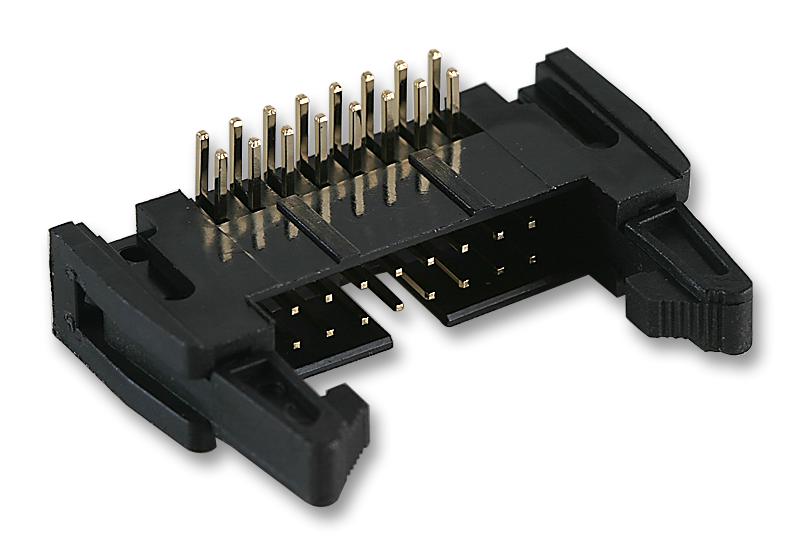

3M - N3431-5302RB - Pin Header, Long Latch, Wire-to-Board, 2.54 mm, 2 Rows, 34 Contacts, Through Hole Right Angle, 3000

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 34Contacts
  • Gender: Header
  • Product Range: 3000 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper
  • Colour: Black
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Current Temperature: 70°C
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.89mm
  • Voltage Rating VAC: 350V
  • Working Voltage: 350V
