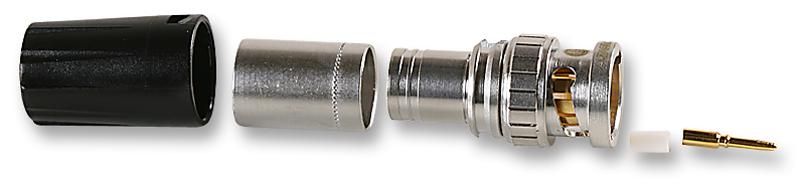

NEUTRIK - NBLC75BVZ17. - RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 75 ohm
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 75ohm
- Coaxial Cable Types: Belden 7731A, Draka 1.6/7.3 AF, RG11
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: -
- Connector Mounting: Cable Mount
- Product Range: rearTWIST Series
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 10.3mm
- Coaxial Type: RG11
- Connector Mounting Orientation: Cable
- Contact Resistance Max: 3mohm
- Contact Resistance Min: 2mohm
- Insulation Resistance: 5Gohm
- No. of Mating Cycles: 1000
- Operating Temperature Max: +85°C
- Operating Temperature Min: -30°C
- Plug Body Material: Brass
- Termination Method: Crimp
- VSWR: 1.10
- Voltage Rating VAC: 500V
- Withstand Voltage: 1500VAC
