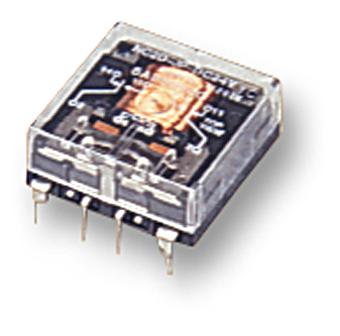

NC2D-JP-DC12V Relay, DPDT, 250VAC, 30Vdc, 5A Panasonic

PANASONICSKU:NC2D-JP-DC12V Bestelcode:1175707

Prijs:
Actie prijs€31,90

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8 units)

Documenten en downloads

Omschrijving

PANASONIC - NC2D-JP-DC12V - General Purpose Relay, NC Series, Power, Non Latching, DPDT, 12 VDC, 5 A

  • Contact Configuration: DPDT
  • Coil Voltage: 12VDC
  • Contact Current: 5A
  • Product Range: NC Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 400ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 135%
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 2000VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 10.9mm
  • External Height: 25.4mm
  • External Length / Height: 25.4mm
  • External Width: 25.4mm
  • Insulation Resistance: 100Mohm
  • Must Actuate Voltage: 9.6V
  • Must Release Voltage: 1.2V
  • Operating Time: 10ms
