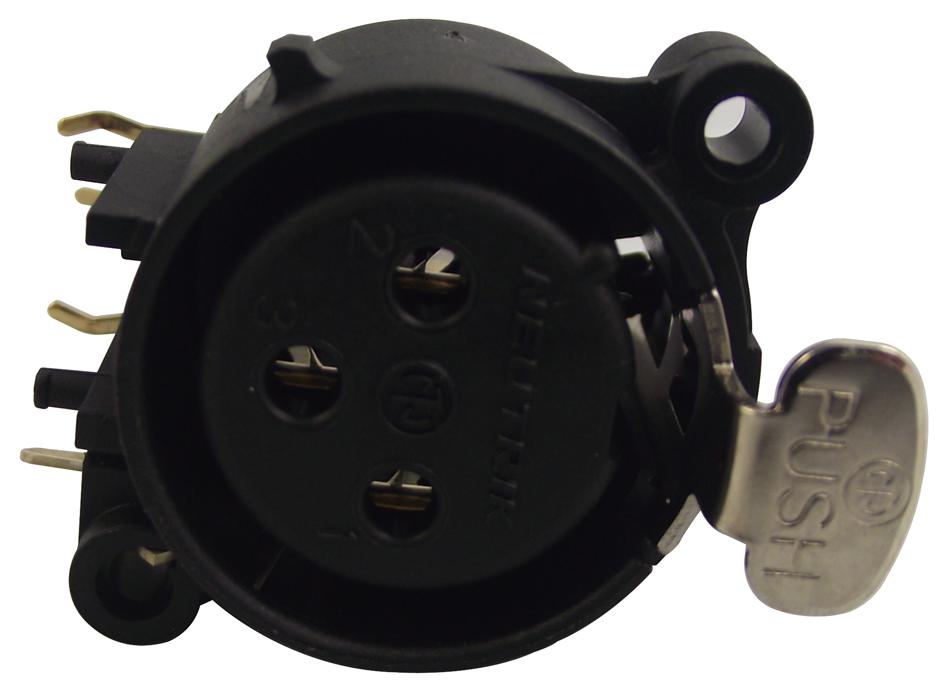

NEUTRIK - NC3FAAH2 - XLR Connector, 3 Contacts, Socket, PCB Mount, Gold Plated Contacts, Plastic Body, AA
- No. of Contacts: 3Contacts
- Gender: Socket
- Connector Mounting: PCB Mount
- Contact Plating: Gold Plated Contacts
- Connector Body Material: Plastic Body
- Product Range: AA Series
- SVHC: No SVHC (27-Jun-2018)
- Colour: Black
- Connector Colour: Black
- Contact Resistance: 8mohm
- Contact Termination: Through Hole Right Angle
- Current Rating: 6A
- External Depth: 22.2mm
- Fixing Centres: 19.8mm
- Fixing Hole Diameter: 3.2mm
- Flammability Rating: UL94HB
- Insertion Force: 20N
- Insulation Resistance: 2Gohm
- Material: Black Plastic
- Mechanical Life: 1000 cycles
- No. of Mating Cycles: 1000
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 22mm
- Termination Method: Solder
- Voltage Rating VAC: 50V
- XLR Capacitance: 7pF
