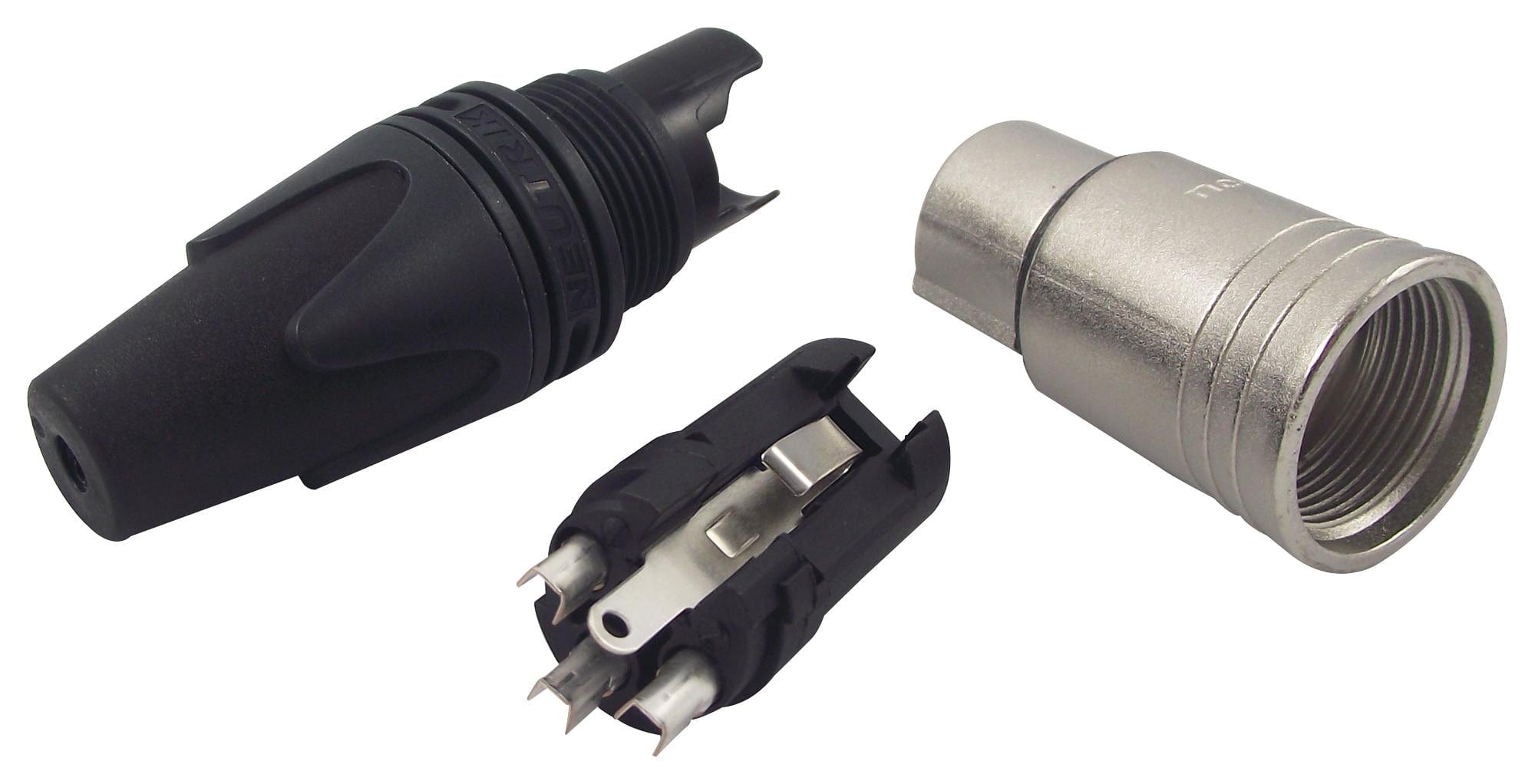

NEUTRIK - NC3FXX - XLR Connector, 3 Contacts, Socket, Cable Mount, Silver Plated Contacts, Metal Body, XX
- No. of Contacts: 3Contacts
- Gender: Socket
- Connector Mounting: Cable Mount
- Contact Plating: Silver Plated Contacts
- Connector Body Material: Metal Body
- Product Range: XX Series
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 8mm
- Cable Diameter Min: 3.5mm
- Connector Colour: Silver, Black
- Contact Resistance: 3mohm
- Contact Termination: Solder
- Current Rating: 16A
- Dielectric Material: PA 6.6, 30% GR
- Flammability Rating: UL94-HB
- Insertion Force: 20N
- Insulation Resistance: 2Gohm
- Material: Zinc diecast, Ni plated
- No. of Mating Cycles: 1000
- Operating Temperature Max: +80°C
- Operating Temperature Min: -30°C
- Proof Voltage: 1500VDC
- Standard: IEC 61076-2-103
- Termination Method: Solder
- Wire Area Size Max: 2.5mm²
- Wire Size AWG Max: 14AWG
- XLR Capacitance: 4pF
