Omschrijving

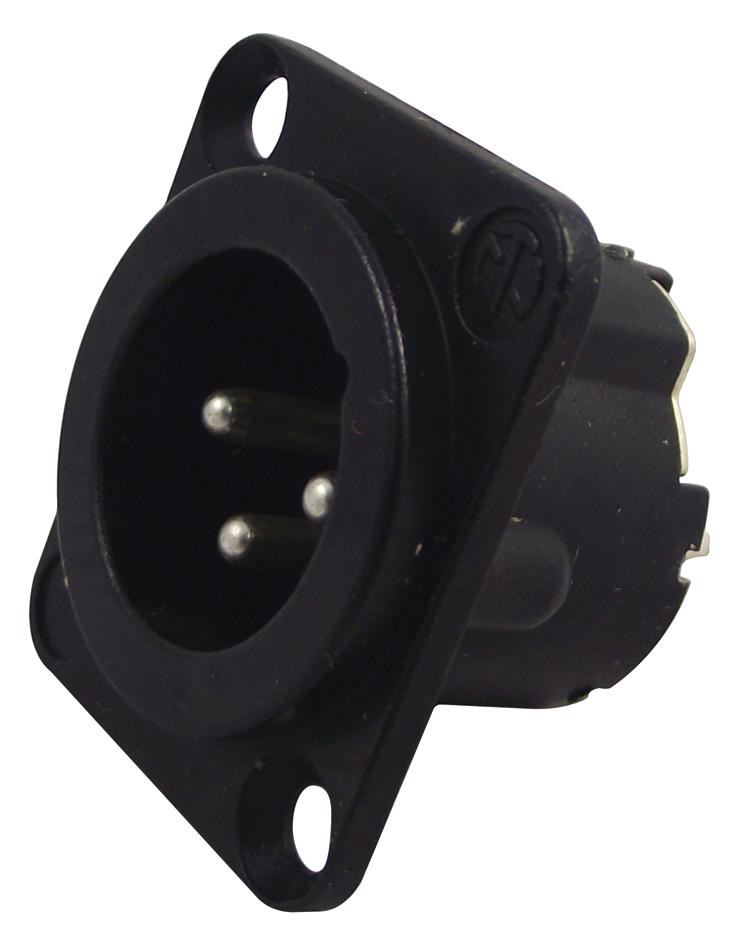

NEUTRIK - NC3MD-LX-BAG - XLR Connector, 3 Contacts, Plug, Panel Mount, Silver Plated Contacts, Metal Body, DLX
- No. of Contacts: 3Contacts
- Gender: Plug
- Connector Mounting: Panel Mount
- Contact Plating: Silver Plated Contacts
- Connector Body Material: Metal Body
- Product Range: DLX Series
- SVHC: No SVHC (27-Jun-2018)
- Body Plating: Black Chrome
- Colour: Black
- Connector Colour: Black
- Contact Termination: Solder
- Current Rating: 16A
- Flammability Rating: UL94HB
- Insulation Resistance: 1Gohm
- Material: Zinc Die-cast
- No. of Mating Cycles: 1000
- Operating Temperature Max: +80°C
- Operating Temperature Min: -30°C
- Standard: IEC 61076-2-103
- Termination Method: Solder
- Wire Area Size Max: 2.5mm²
- Wire Size AWG Max: 14AWG
