NC3MXX-B Plug, xlr, Free, Black, 3WAY Neutrik

NEUTRIKSKU:NC3MXX-B Bestelcode:9991816

Prijs:
Actie prijs€8,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (9375 units)

Documenten en downloads

Omschrijving

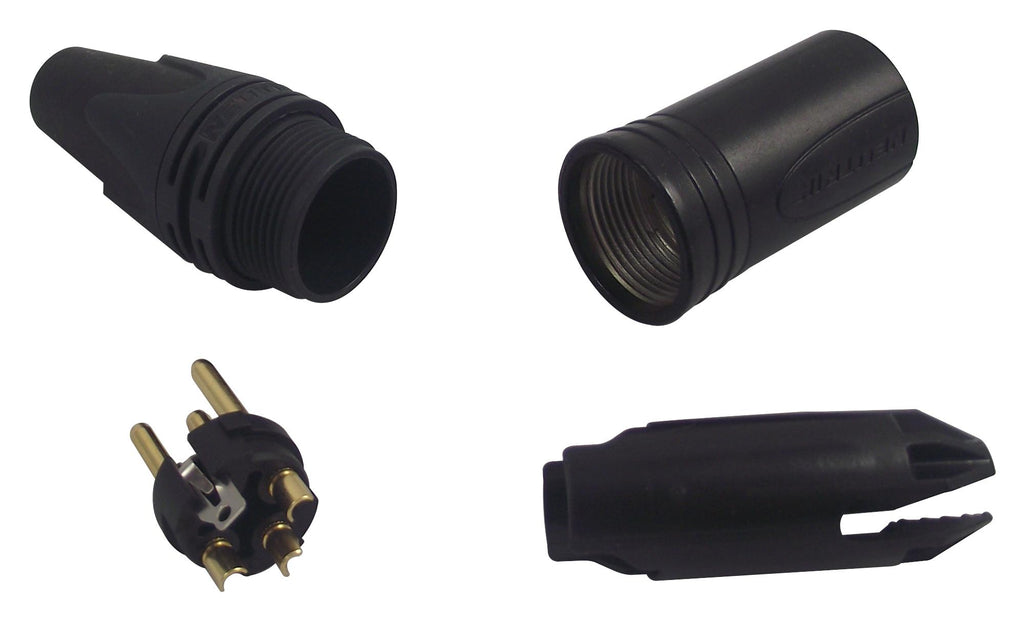

NEUTRIK - NC3MXX-B - XLR Connector, 3 Contacts, Plug, Cable Mount, Gold Plated Contacts, Metal Body, XX

  • No. of Contacts: 3Contacts
  • Gender: Plug
  • Connector Mounting: Cable Mount
  • Contact Plating: Gold Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: XX Series
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 8mm
  • Cable Diameter Min: 3.5mm
  • Colour: Black
  • Connector Colour: Black
  • Contact Resistance: 3mohm
  • Contact Termination: Solder
  • Current Rating: 16A
  • Dielectric Material: PA 6.6, 30% GR
  • Flammability Rating: UL94-HB
  • Insertion Force: 20N
  • Insulation Resistance: 2Gohm
  • Material: Zinc diecast, Ni plated
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: +80°C
  • Operating Temperature Min: -30°C
  • Proof Voltage: 1500VDC
  • Standard: IEC 61076-2-103
  • Termination Method: Solder
  • Wire Area Size Max: 2.5mm²
  • Wire Size AWG Max: 14AWG
  • XLR Capacitance: 4pF
