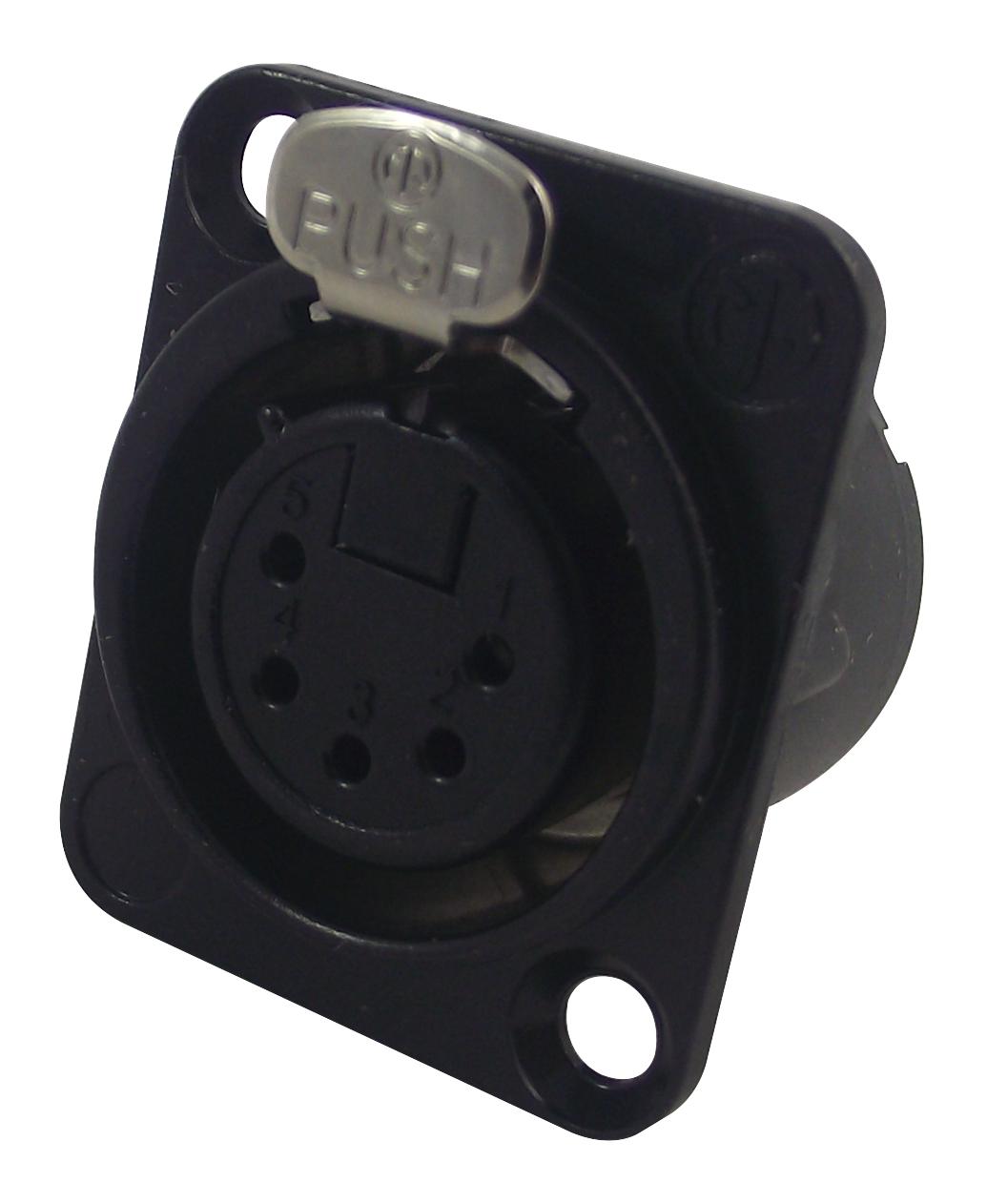

NC5FD-LX-BAG Socket, xlr, Black, 5POLE Neutrik

NEUTRIKSKU:NC5FD-LX-BAG Bestelcode:1390126

Prijs:
Actie prijs€15,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (382 units)

Documenten en downloads

Omschrijving

NEUTRIK - NC5FD-LX-BAG - XLR Connector, 5 Contacts, Socket, Panel Mount, Silver Plated Contacts, Metal Body, DLX

  • No. of Contacts: 5Contacts
  • Gender: Socket
  • Connector Mounting: Panel Mount
  • Contact Plating: Silver Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: DLX Series
  • SVHC: No SVHC (27-Jun-2018)
  • Body Plating: Black Chrome
  • Colour: Black
  • Connector Colour: Black
  • Contact Termination: Solder
  • Current Rating: 7.5A
  • Flammability Rating: UL94HB
  • Insulation Resistance: 1Gohm
  • Material: Zinc Die-cast
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: +80°C
  • Operating Temperature Min: -30°C
  • Standard: IEC 61076-2-103
  • Termination Method: Solder
  • Wire Area Size Max: 1mm²
  • Wire Size AWG Max: 18AWG
