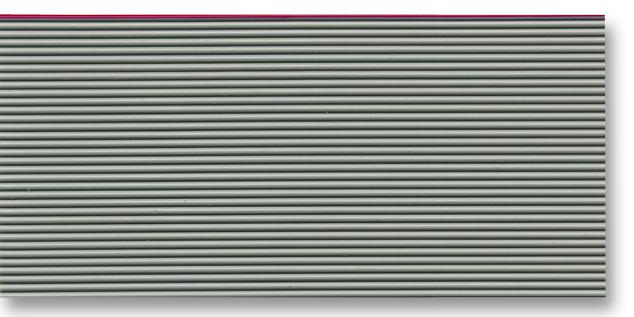

NFCG-2826 Ribbon Cable, Grey, 26WAY, 30.5m Pro Power

PRO POWERSKU:NFCG-2826 Bestelcode:9187200

Prijs:
Actie prijs€169,36

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (22 units)

Documenten en downloads

Omschrijving

PRO POWER - NFCG-2826 - Ribbon Cable, Flat, Unscreened, 26 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m

  • Cable Shielding: Unscreened
  • No. of Cores: 26Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.072mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Grey
  • Cable Width: 33.02mm
  • No. of Max Strands x Strand Size: 7 x 0.127mm
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: NFCG Series
  • Approval Bodies: CSA, UL
  • Capacitance: 45pF/m
  • Colour: Grey
  • Conductor Make-up: 7/0.127mm
  • Impedance: 100ohm
  • Inductance Per Metre: 1.45µH/m
  • Insulation Resistance: 1Gohm
  • Operating Temperature Max: 105°C
  • Primary Conductor Resistance: 237ohm/km
  • Propagation Delay: 4.2ns/m
