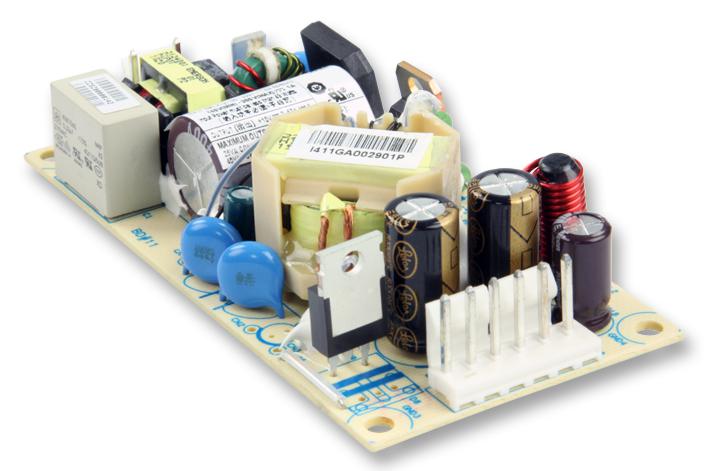

ARTESYN EMBEDDED TECHNOLOGIES - NPS28-M - AC/DC Open Frame Power Supply (PSU), Medical, 1 Output, 40W @ 200LFM, 25 W, 90V AC to 264V AC
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 25W
- Power Rating (Forced Cooling): 40W @ 200LFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 520mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: NPS20-M Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 60601, UL 60601
- Height: 25.4mm
- Input Frequency: 440Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 101.6mm
- No. of Outputs: 1Outputs
- Output Current Max: 520mA
- Output Power Max: 25W
- Power Rating: 40W
- Power Supply Type: Open Frame
- Width: 50.8mm
