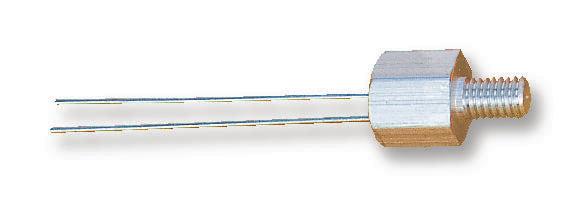

VISHAY - NTCASCWE3103J - Thermistor, NTC, 10 kohm, NTCAS Series, 3977 K, Through Hole, Radial Leaded
- Zero Power Resistance at 25°C: 10kohm
- Product Range: NTCAS Series
- Thermistor Mounting: Through Hole
- Beta Value (K): 3977K
- Thermistor Case Style: -
- Thermistor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- Beta Value Lower Limit Temperature: 25°C
- Body Diameter: 8mm
- External Length / Height: 81mm
- Lead Diameter: 0.6mm
- Lead Length: 34mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +100°C
- Resistance: 10kohm
- Resistance Temperature: 25°C
- Resistance Tolerance: ± 5%
- Temperature Upper Limit Beta Value: 85°C
- Thermistor Tolerance: -5% to +5%
- Thermistor Type: NTC
- Thread Size: 5.5
