NV1-1G000-C PSU, SW MODE, 24V TDK-LAMBDA

TDK-LAMBDASKU:NV1-1G000-C Bestelcode:1216322

Prijs:
Actie prijs€302,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

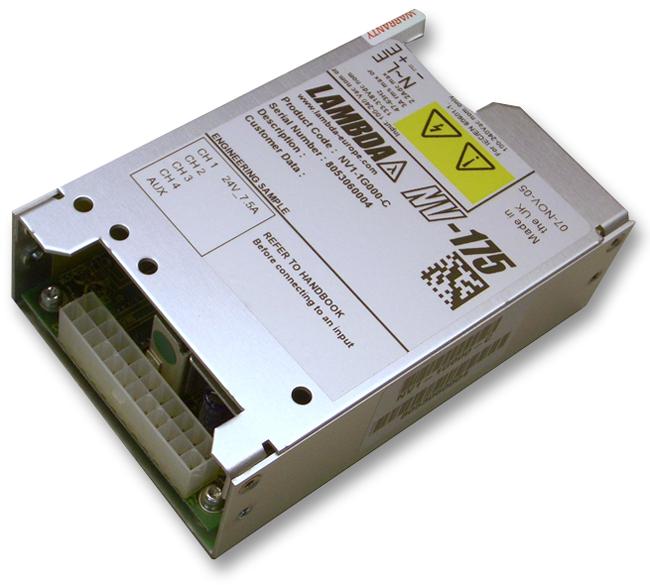

TDK-LAMBDA - NV1-1G000-C - AC/DC Enclosed Power Supply (PSU), Medical, 1 Outputs, 175 W, 24 V, 7.5 A

  • No. of Outputs: 1Outputs
  • Output Power Max: 175W
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 7.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 90V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Broadcast, Industrial, Medical, Telecom
  • Approval Bodies: CE, CSA, EN, IEC, UL
  • Efficiency: 85%
  • External Depth: 40.6mm
  • External Length / Height: 127mm
  • External Width: 84.4mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Height: 32mm
  • Hold Up Time: 16ms
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Inrush Current: 40A
  • Leakage Current: 300µA
  • Length: 127mm
  • No. of Outputs: 1 Output
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: 0°C
  • Output Current Max: 7.5A
  • Power Rating: 175W
  • Power Supply Type: Switch Mode
  • Storage Temperature Max: 85°C
