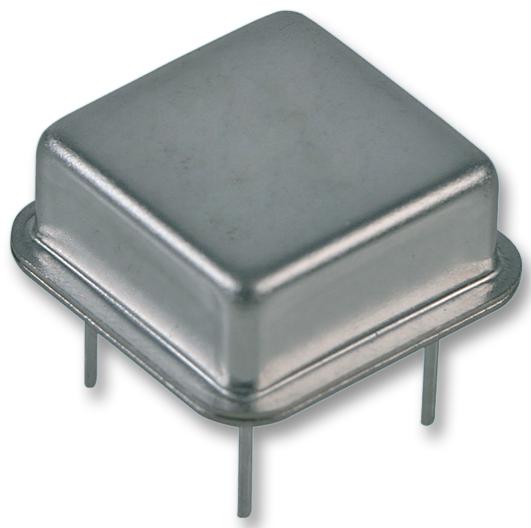

O40M000000L126 CRYSTAL OSCILLATOR, 40MHZ AEL CRYSTALS

AEL CRYSTALSSKU:O40M000000L126 Bestelcode:9510168

Prijs:
Actie prijs€3,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (153 units)

Documenten en downloads

Omschrijving

AEL CRYSTALS - O40M000000L126 - Oscillator, Crystal, 40 MHz, 100 ppm, Through Hole, 12.9mm x 12.9mm, 5 V, AEL 1210 Series

  • Frequency Nom: 40MHz
  • Frequency Stability + / -: 100ppm
  • Oscillator Case: Through Hole, 12.9mm x 12.9mm
  • Supply Voltage Nom: 5V
  • Product Range: AEL 1210 Series
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Oscillator Output Compatibility: HCMOS / TTL
  • SVHC: No SVHC (15-Jan-2019)
  • Crystal Case: DIP
  • Duty Cycle (%): 55%
  • Duty Cycle Lower Limit: 45%
  • Duty Cycle Upper Limit: 55%
  • Fall Time tf: 6ns
  • Frequency: 40MHz
  • Frequency Accuracy + @: 100ppm
  • Frequency Accuracy - @: 100ppm
  • Frequency Stability: ± 100ppm
  • Load Capacitance: 15pF
  • No. of Pins: 4Pins
  • Operating Temperature Range: 0°C to +70°C
  • Output Drive Level: Universal
  • Output Frequency: 40MHz
  • Resonator Case: Radial Leaded
  • Rise Time: 6ns
  • Supply Current Max: 40mA
  • Temperature Stability + @: 100ppm
  • Temperature Stability - @: 100ppm
  • Temperature Stabilty: 100ppm
