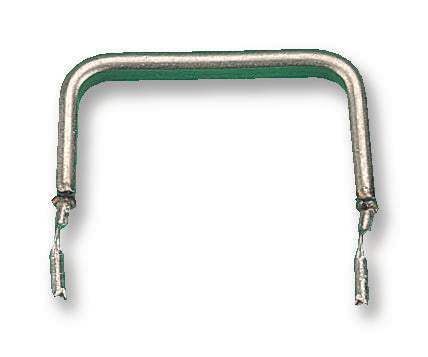

TT ELECTRONICS / WELWYN - OAR1 - R010FI - Current Sense Resistor, 0.01 ohm, OAR, 1 W, Metal Strip, Radial Leaded, ± 1%
- Resistance: 0.01ohm
- Product Range: OAR Series
- Power Rating: 1W
- Resistor Element Material: Metal Strip
- Resistor Case Style: Radial Leaded
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 20ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Length / Height: 5.08mm
- External Width: 1.65mm
- Full Power Rating Temperature: 85°C
- Lead Diameter: 1.02mm
- Lead Length: 3.18mm
- Lead Spacing: 11.43mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 20ppm/°C
- Temperature Coeff. -: 20ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
