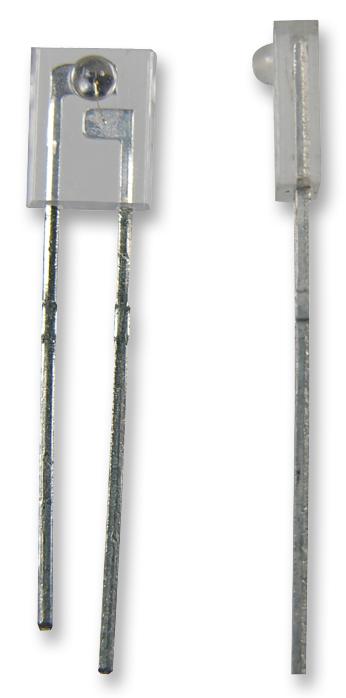

OP140A Infrared Emitter, 935 Nm, Side Looking TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGY - OP140A - Infrared Emitter, 935 nm, 80 °, Side Looking, 1 µs, 500 ns

• Peak Wavelength: 935nm
• Angle of Half Intensity: 80°
• Diode Case Style: Side Looking
• Radiant Intensity (Ie): -
• Rise Time: 1µs
• Fall Time tf: 500ns
• Forward Current If(AV): 50mA
• Forward Voltage VF Max: 1.6V
• Operating Temperature Min: -40°C
• Operating Temperature Max: 100°C
• Automotive Qualification Standard: -
• Product Range: -
• MSL: -
• SVHC: No SVHC (27-Jun-2018)
• External Depth: 2.3mm
• External Length / Height: 5.7mm
• External Width: 4.4mm
• Lead Length: 12.7mm
• Lead Spacing: 2.54mm
• No. of Pins: 2Pins
• Operating Temperature Range: -40°C to +100°C
• Peak Pulse Current Ippm: 3A
• Radiometric Power Min: 0.4mW
• Reverse Leakage Current Max: 100µA
• Storage Temperature Max: 100°C
• Storage Temperature Min: -40°C
• Viewing Angle: 80°
