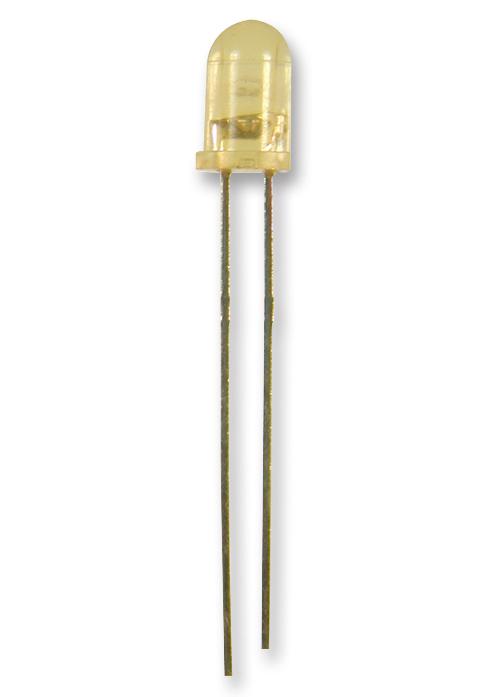

OP290A Infrared Emitter, 890nm, T-1 3/4 TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYSKU:OP290A Bestelcode:1497872

Prijs:
Actie prijs€2,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (961 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / OPTEK TECHNOLOGY - OP290A - Infrared Emitter, 890 nm, 100 °, T-1 3/4 (5mm), 500 ns, 250 ns

  • Peak Wavelength: 890nm
  • Angle of Half Intensity: 100°
  • Diode Case Style: T-1 3/4 (5mm)
  • Radiant Intensity (Ie): -
  • Rise Time: 500ns
  • Fall Time tf: 250ns
  • Forward Current If(AV): 150mA
  • Forward Voltage VF Max: 4V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 100°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • External Length / Height: 7.62mm
  • Head Diameter: 4.95mm
  • Lead Length: 19.05mm
  • Lead Spacing: 2.54mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +100°C
  • PIV Max: 5V
  • Peak Pulse Current Ippm: 5A
  • Radiometric Power Min: 210mW
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 100°C
  • Storage Temperature Min: -40°C
  • Viewing Angle: 100°
