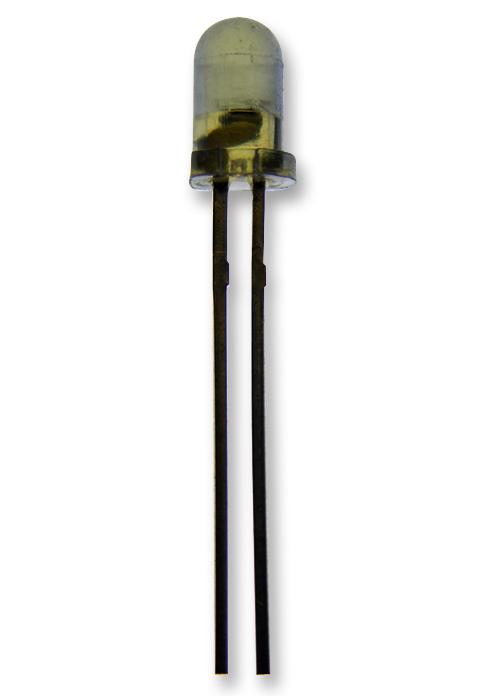

OP506A Phototransistor, Plastic T-1 TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYSKU:OP506A Bestelcode:1497880

Prijs:
Actie prijs€1,61

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (395 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / OPTEK TECHNOLOGY - OP506A - Phototransistor, 935 nm, 100 mW, 2 Pins, T-1 (3mm)

  • Wavelength Typ: 935nm
  • Viewing Angle: -
  • Power Consumption: 100mW
  • No. of Pins: 2Pins
  • Transistor Case Style: T-1 (3mm)
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • Current Ic Min: 4.3mA
  • Dark Current: 100nA
  • External Length / Height: 4.82mm
  • External Width: 3.05mm
  • Lead Length: 12.7mm
  • Lead Spacing: 2.54mm
  • Nom Sensitivity @ mW/cm²: 4.3mA @ 0.5mW/cm²
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Peak Spectral Response Wavelength: 935nm
  • Power Dissipation Pd: 100mW
  • Storage Temperature Max: 100°C
  • Storage Temperature Min: -40°C
  • Transistor Polarity: NPN
  • Transistor Type: NPN
  • Voltage Vcc: 5V
