Omschrijving

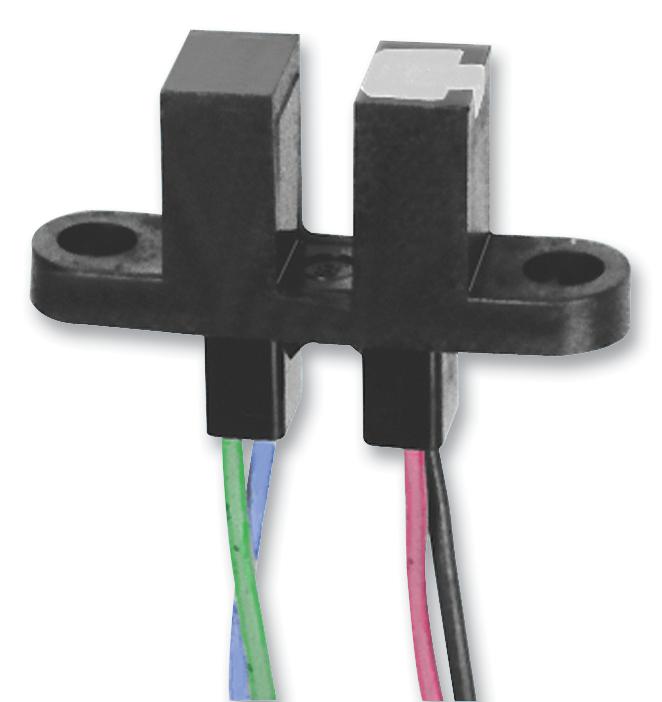

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB480T11Z - Transmissive Photo Interrupter, 10K Pullup, Panel / Chassis, 3.18 mm, 0.25 mm, 40 mA, 2 V
- Sensor Output: 10K Pullup
- Sensor Mounting: Panel / Chassis
- Gap Width: 3.18mm
- Aperture Width: 0.25mm
- Forward Current If: 40mA
- Reverse Voltage Vr: 2V
- Forward Voltage: 1.7V
- Product Range: OPB480 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Input Current: 20mA
- No. of Channels: 1Channels
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Output Current: 14µA
- Output Voltage: 14.5V
- Output Voltage Max: 14.5V
- Supply Voltage DC Max: 16V
- Supply Voltage DC Min: 4.5V
- Supply Voltage Range DC: 4.5V to 16V
