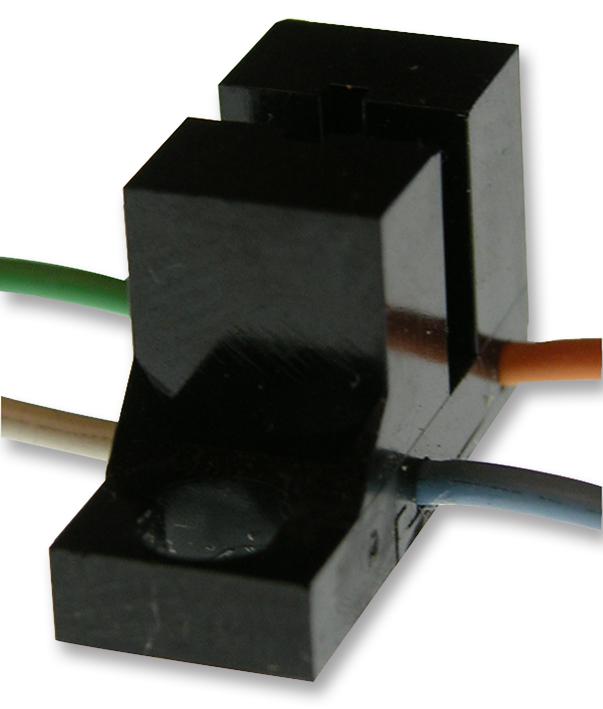

OPB821S5Z Photo Interrupter, Transmissive, 2.03mm TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYSKU:OPB821S5Z Bestelcode:1497922

Prijs:
Actie prijs€9,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (107 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB821S5Z - Transmissive Photo Interrupter, Phototransistor, Panel / Chassis, 2.03 mm, 1.02 mm, 20 mA, 2 V

  • Sensor Output: Phototransistor
  • Sensor Mounting: Panel / Chassis
  • Gap Width: 2.03mm
  • Aperture Width: 1.02mm
  • Forward Current If: 20mA
  • Reverse Voltage Vr: 2V
  • Forward Voltage: 1.7V
  • Product Range: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 0.4V
  • External Depth: 6.35mm
  • External Length / Height: 8.89mm
  • External Width: 15.24mm
  • Forward Voltage VF Max: 1.7V
  • Gap Width: 2.03mm
  • Input Current: 20mA
  • No. of Channels: 1Channels
  • On Current Ic: 500µA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 30V
  • Peak Wavelength: 890nm
  • Reverse Leakage Current Max: 100µA
  • Voltage BVceo Min: 30V
  • Voltage BVeco Min: 5V
