Omschrijving

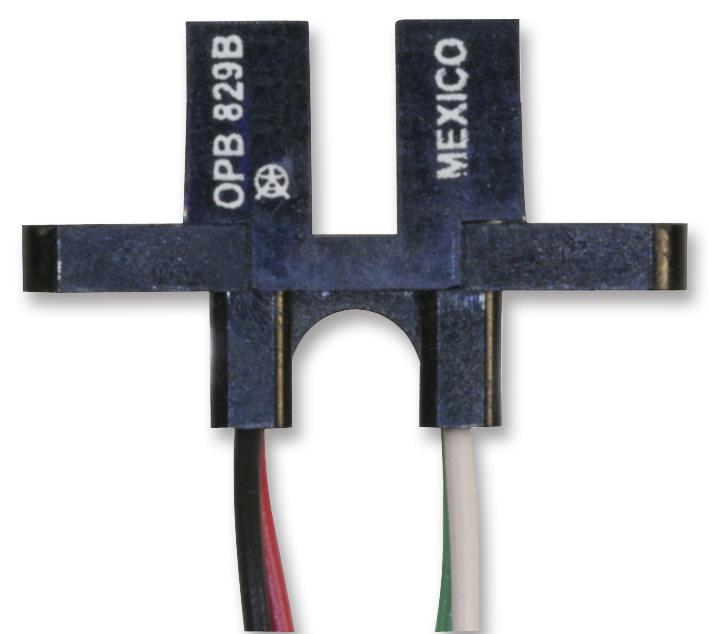

TT ELECTRONICS / OPTEK TECHNOLOGY - OPB829DZ - Transmissive Photo Interrupter, Phototransistor, Panel / Chassis, 3.18 mm, 50 mA, 2 V
- Sensor Output: Phototransistor
- Sensor Mounting: Panel / Chassis
- Gap Width: 3.18mm
- Aperture Width: -
- Forward Current If: 50mA
- Reverse Voltage Vr: 2V
- Forward Voltage: 1.7V
- Product Range: OPB829Z Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 0.6V
- External Depth: 6.35mm
- External Length / Height: 10.03mm
- External Width: 24.64mm
- Forward Voltage VF Max: 1.7V
- Gap Width: 3.18mm
- Input Current: 20mA
- Material: Plastic - Opaque
- No. of Channels: 1Channels
- On Current Ic: 1800µA
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +80°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 30V
- Peak Wavelength: 890nm
- Reverse Leakage Current Max: 100µA
- Voltage BVceo Min: 30V
- Voltage BVeco Min: 5V
