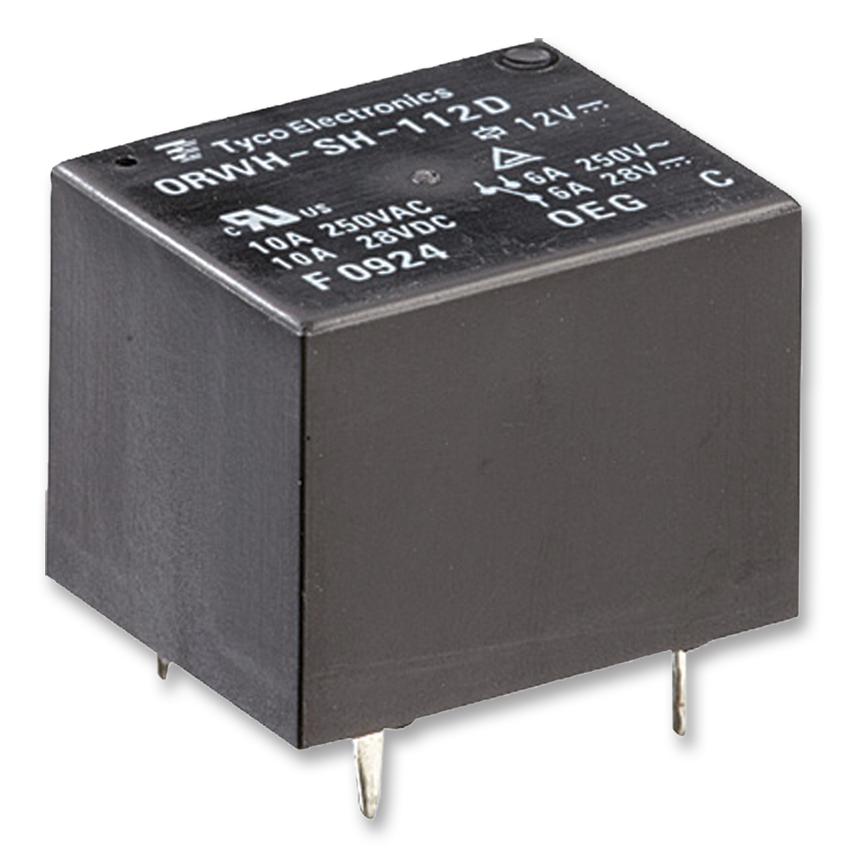

ORWH-Sh-124D1F,000 Relay, SPDT, 250VAC, 28VDC, 10A OEG - Te Connectivity

OEG - TE CONNECTIVITYSKU:1-1721150-5 Bestelcode:2325633

Prijs:
Actie prijs€2,26

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2788 units)

Documenten en downloads

Omschrijving

OEG - TE CONNECTIVITY - 1-1721150-5 - General Purpose Relay, ORWH Series, Power, Non Latching, SPDT, 24 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: ORWH Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 28VDC
  • Contact Material: Silver Zinc Oxide
  • Coil Resistance: 1.6kohm
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 277V
  • Contact Voltage DC Nom: 28V
  • External Depth: 19mm
  • External Height: 15.8mm
  • External Width: 15.5mm
  • Nom Operating Power: 360mW
  • Relay Type: Power
