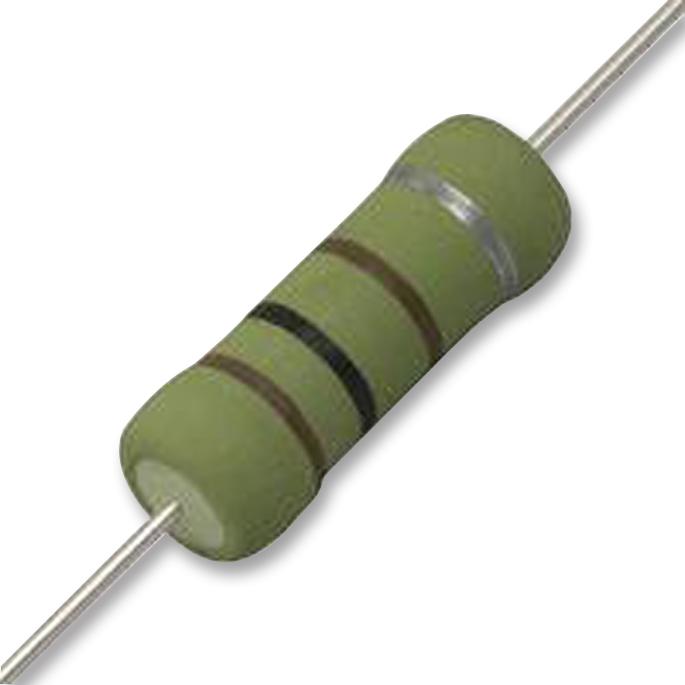

OHMITE - OX220KE - Through Hole Resistor, 22 ohm, OX, 1 W, ± 10%, Axial Leaded, 300 V
- Resistance: 22ohm
- Product Range: OX Series
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 300V
- Resistor Element Material: Ceramic
- Temperature Coefficient: -1300, ± 300ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Body Diameter: 5.5mm
- Dielectric Strength VDC: 500V
- External Length / Height: 16.5mm
- Lead Diameter: 0.8mm
- Lead Length: 38mm
- No. of Pins: 2Pins
- Operating Temperature Max: 220°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +220°C
- Overload Voltage: 600V
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 300ppm/°C
- Temperature Coeff. -: 300ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 300V
