P11S1A0BGSY00103KA Potentiometer, Linear, 10K, 1W, 20% Vishay

VISHAYSKU:P11S1A0BGSY00103KA Bestelcode:1517298

Prijs:
Actie prijs€23,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (27 units)

Documenten en downloads

Omschrijving

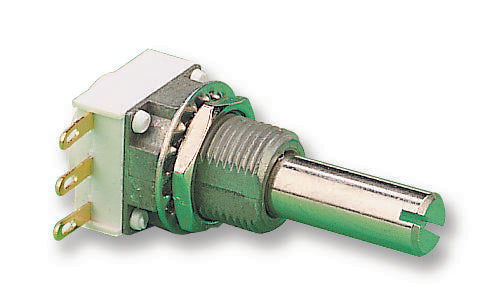

VISHAY - P11S1A0BGSY00103KA - Rotary Potentiometer, Cermet, 10 kohm, 1 Turns, Linear, 1 W, ± 20%, P11S

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 20%
  • Product Range: P11S Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 3.18mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 15.9mm
  • Contact Resistance Variation +: 2%
  • Contact Resistance Variation -: 2%
  • Electrical Angular Rotation Tolerance +: 10°
  • Electrical Angular Rotation Tolerance -: 10°
  • End Resistance: 2ohm
  • Insulation Resistance: 1000Gohm
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 1500V
  • Resistor Element Material: Cermet
  • Rotation Electrical Angle: 270°
  • Rotation Mechanical Angle: 300°
  • Temperature Coefficient: ± 100ppm/°C
  • Voltage Rating: 350V
