Omschrijving

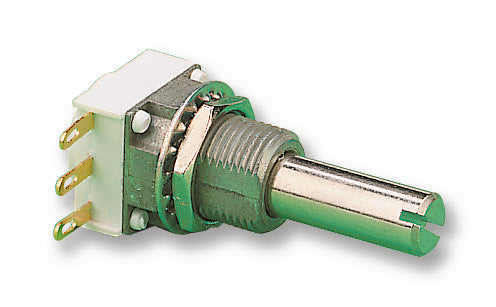

VISHAY - P11S1V0FLSY00101KA - Rotary Potentiometer, Cermet, 100 ohm, 1 Turns, Linear, 1 W, ± 10%, P11S
- Track Resistance: 100ohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: P11S Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 25mm
- Contact Resistance Variation -: 2%
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: 10°
- End Resistance: 2ohm
- External Depth: 11.1mm
- External Length / Height: 13mm
- External Width: 12.5mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 3ohm
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1500V
- Resistance: 100ohm
- Resistor Element Material: Cermet
- Rotation Electrical Angle: 270°
- Rotation Mechanical Angle: 300°
- Temperature Coeff. +: 150ppm/°C
- Temperature Coeff. -: 150ppm/°C
- Temperature Coefficient: ± 150ppm/°C
