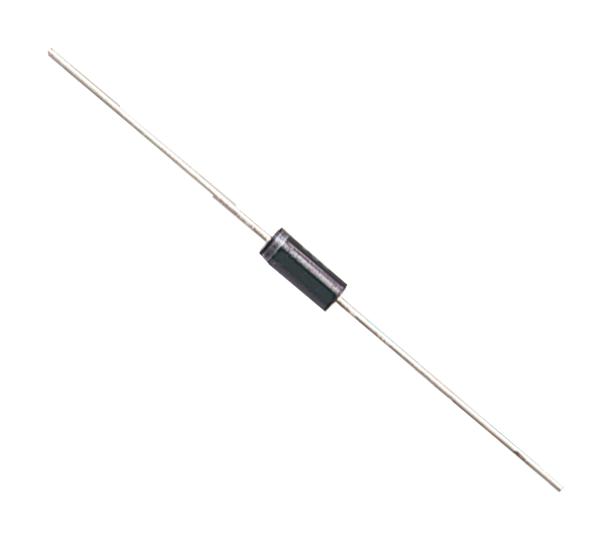

P6KE300A Diode, TVs, 300V, 600W STMICROELECTRONICS

STMICROELECTRONICSSKU:P6KE300A Bestelcode:9885412

Prijs:
Actie prijs€1,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (15619 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - P6KE300A - TVS Diode, P6KE3, Unidirectional, 256 V, 529 V, DO-15, 2 Pins

  • Product Range: P6KE3 Series
  • TVS Polarity: Unidirectional
  • Reverse Stand-Off Voltage Vrwm: 256V
  • Clamping Voltage Vc Max: 529V
  • Diode Case Style: DO-15
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 285V
  • Breakdown Voltage Max: 315V
  • Peak Pulse Power Dissipation: 600W
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alternate Case Style: DO-204AC
  • Body Diameter: 3.56mm
  • Breakdown Voltage: 300V
  • Breakdown Voltage Range: 285V to 315V
  • Breakover Voltage Min: 285V
  • Capacitance Cd @ Vr Typ: 290pF
  • Clamping Voltage @ 8/20µs Max: 529V
  • Diode Type: Unidirectional TVS
  • External Length / Height: 7.62mm
  • Full Power Rating Temperature: 75°C
  • Peak Pulse Current Ippm: 7.6A
  • Power Dissipation Pd: 5W
  • Power Dissipation Ptot Max: 5W
  • Power Rating: 600W
  • Reverse Leakage Current Max: 1µA
  • Stand-off Voltage: 256V
  • Test Current: 1mA
  • Uni / Bi Directional Polarity: Unidirectional
