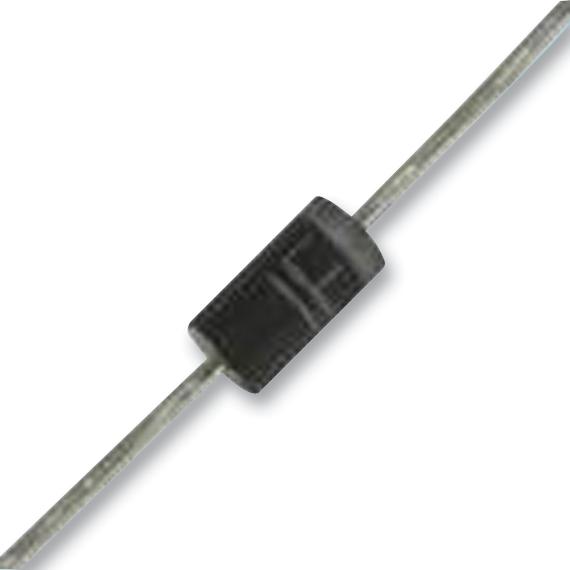

LITTELFUSE - P6KE6.8A - TVS Diode, P6KE6, Unidirectional, 5.8 V, 10.5 V, DO-15, 2 Pins
- Product Range: P6KE6 Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 5.8V
- Clamping Voltage Vc Max: 10.5V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 6.45V
- Breakdown Voltage Max: 7.14V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- Breakdown Voltage: 6.45V
- Breakdown Voltage Range: 6.45V to 7.14V
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 175°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Peak Pulse Current Ippm: 58.1A
- Power Dissipation Pd: 5W
- Stand-off Voltage: 5.8V
- Termination Type: Axial Leaded
