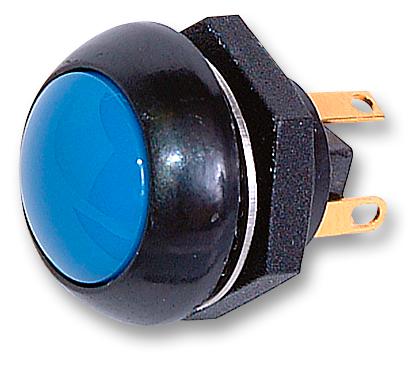

P9113126 Switch, SPNO, SPNC, Blue Otto Controls

OTTO CONTROLSSKU:P9113126 Bestelcode:1138752

Prijs:
Actie prijs€33,81

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (368 units)

Documenten en downloads

Omschrijving

OTTO CONTROLS - P9113126 - Industrial Pushbutton Switch, P9, 12 mm, SPDT-DB, Momentary, Flush, Blue

  • Switch Operation: Momentary
  • Contact Configuration: SPDT-DB
  • Contact Voltage AC Nom: 115V
  • Contact Voltage DC Nom: 28V
  • Contact Current Max: 5A
  • Switch Terminals: Solder Lug
  • Product Range: P9 Series
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Dome
  • Actuator / Cap Colour: Blue
  • Behind Panel Depth: 14mm
  • Colour: Black
  • Contact Current @ Contact Voltage AC Max: 5A
  • Contact Current @ Contact Voltage AC Min: 2.5A
  • Contact Current AC Max: 4A
  • Contact Current DC Max: 4A
  • Contact Current Rating: 5A
  • Contact Voltage VAC: 115V
  • Contact Voltage VDC: 28V
  • External Diameter: 17.5mm
  • External Length / Height: 19.35mm
  • IP / NEMA Rating: IP64
  • IP Rating: IP64
  • Illumination Colour: Non-illuminated
  • No. of Mechanical Operations: 1000000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -55°C
  • Panel Cutout Diameter: 12mm
  • Panel Cutout Width: 11.3mm
  • Panel Cutout length: 11.9mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Industrial
  • Single Flat Panel Cut-out Diameter: 11.9mm
