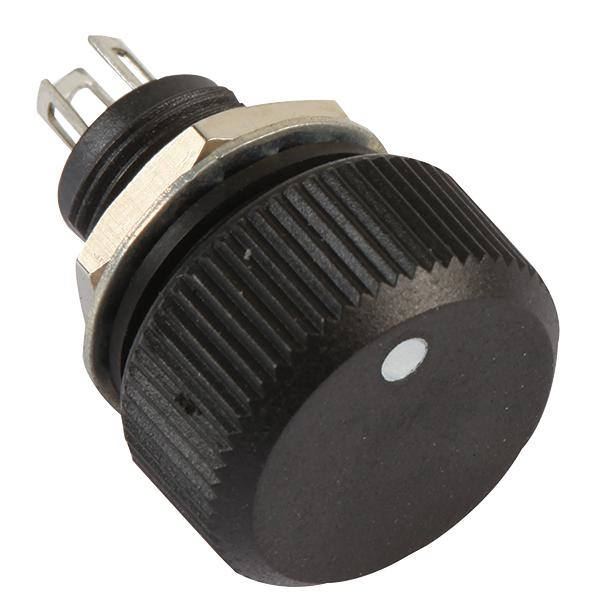

VISHAY - PA16NP102MAB15 - Rotary Potentiometer, Conductive Plastic, 1 kohm, 1 Turns, Linear, 500 mW, ± 10%, PA16N
- Track Resistance: 1kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Product Range: PA16N Series
- Potentiometer Mounting: Panel
- Shaft Diameter: -
- No. of Gangs: 1
- Adjustment Type: Rotary
- Shaft Length: -
- Contact Resistance Variation +: 2%
- Contact Resistance Variation -: 2%
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: 10°
- End Resistance: 1ohm
- Insulation Resistance: 10000000Mohm
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Proof Voltage: 2500V
- Resistor Element Material: Conductive Plastic
- Rotation Electrical Angle: 270°
- Rotation Mechanical Angle: 300°
- Temperature Coefficient: ± 1000ppm/°C
- Voltage Rating: 350V
