Omschrijving

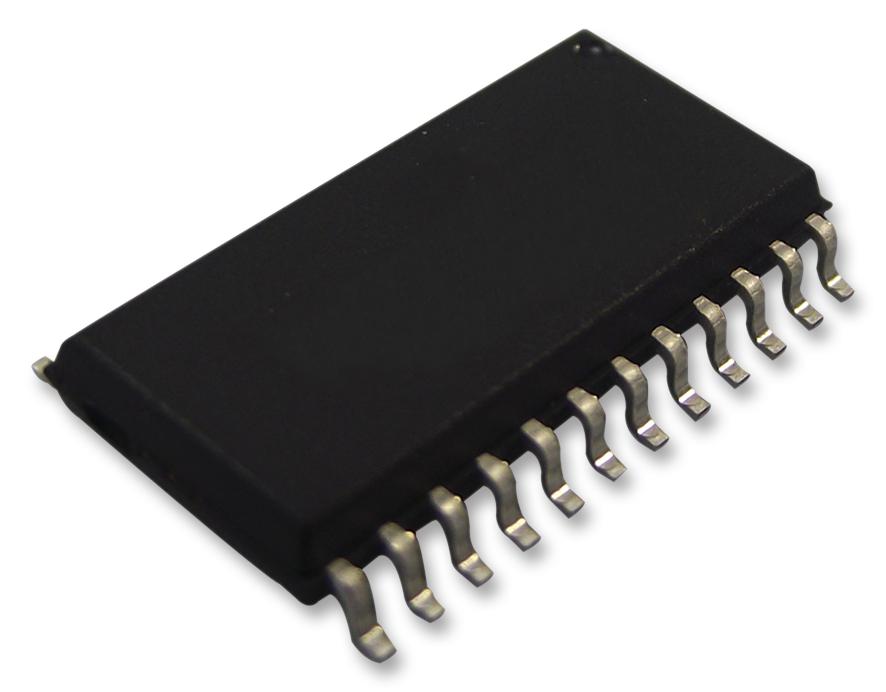

NXP - PCA9555D,112 - I/O Expander, 16bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, SOIC
- Chip Configuration: 16bit
- Bus Frequency: 400kHz
- IC Interface Type: I2C, SMBus
- Supply Voltage Min: 2.3V
- Supply Voltage Max: 5.5V
- Interface Case Style: SOIC
- No. of Pins: 24Pins
- No. of I/O's: 16I/O's
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 9555
- Communication Function: I/O Expander
- Control Interface: I2C
- IC Function: 16bit I/O Port with Interrupt
- IC Generic Number: 9555
- Logic Function Number: 9555
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Supply Current: 135µA
