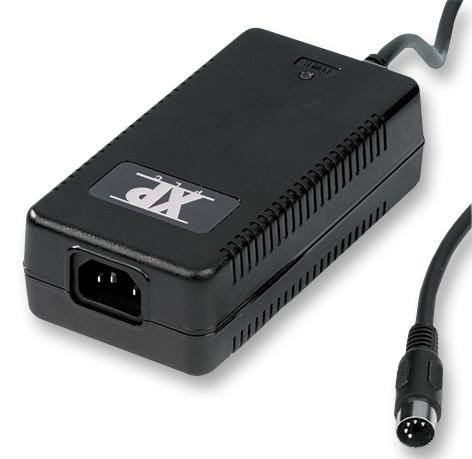

XP POWER - PCM50US48 - AC/DC Power Supply, Medical, 1 Output, 50 W, 48 V, 1.04 A
- No. of Outputs: 1 Output
- Output Power Max: 50W
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 1.04A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Connector: 5 Way DIN
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 90V AC to 264V AC
- Product Range: PCM Series
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 22.2 No. 601, EN 60601, UL 60601
- External Depth: 146mm
- External Length / Height: 43mm
- External Width: 76mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- No. of Outputs: 1Outputs
- Output Current Max: 1.04A
- Output Power: 50W
- Power Rating: 50W
- Power Supply Type: External Power Supply
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 240V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
