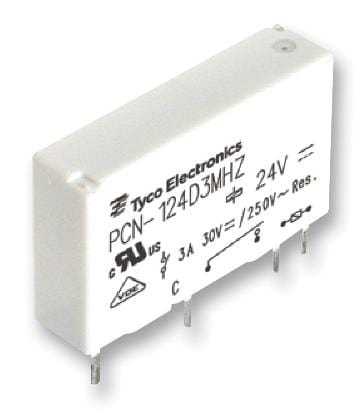

PCN-112D3MHZ Relay, SPST-NO, 250VAC, 30Vdc, 3a Te Connectivity

TE CONNECTIVITYSKU:PCN-112D3MHZ Bestelcode:4444942

Prijs:
Actie prijs€8,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3083 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - 3-1461491-3 - Power Relay, SPST-NO, 12 VDC, 3 A, PCN, Through Hole, Non Latching

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 3A
  • Product Range: PCN Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.2kohm
  • Coil Current: 10mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 3A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • Dielectric Strength VDC: 3000VAC
  • External Depth: 20mm
  • External Height: 12.5mm
  • External Width: 5mm
  • Mechanical Life: 20,000,000 Operations
  • Nom Operating Power: 120mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Operating Time: 5ms
  • Relay Type: Power
  • Release Time: 2ms
